Auntie Yatie's Café
Cajal Bodies drew a sixty-two sheet A3 contractor set for Auntie Yatie's Café in Bara, South Sulawesi: plans, elevations and sections a local builder can work from.
Auntie Yatie's Café is a small café on the coast a few minutes north of Tanjung Bira. The brief was a set a builder can actually work from, not a visualisation: plans, elevations and sections at a scale you can hold a tape measure against, with every height, length and width on the drawing.

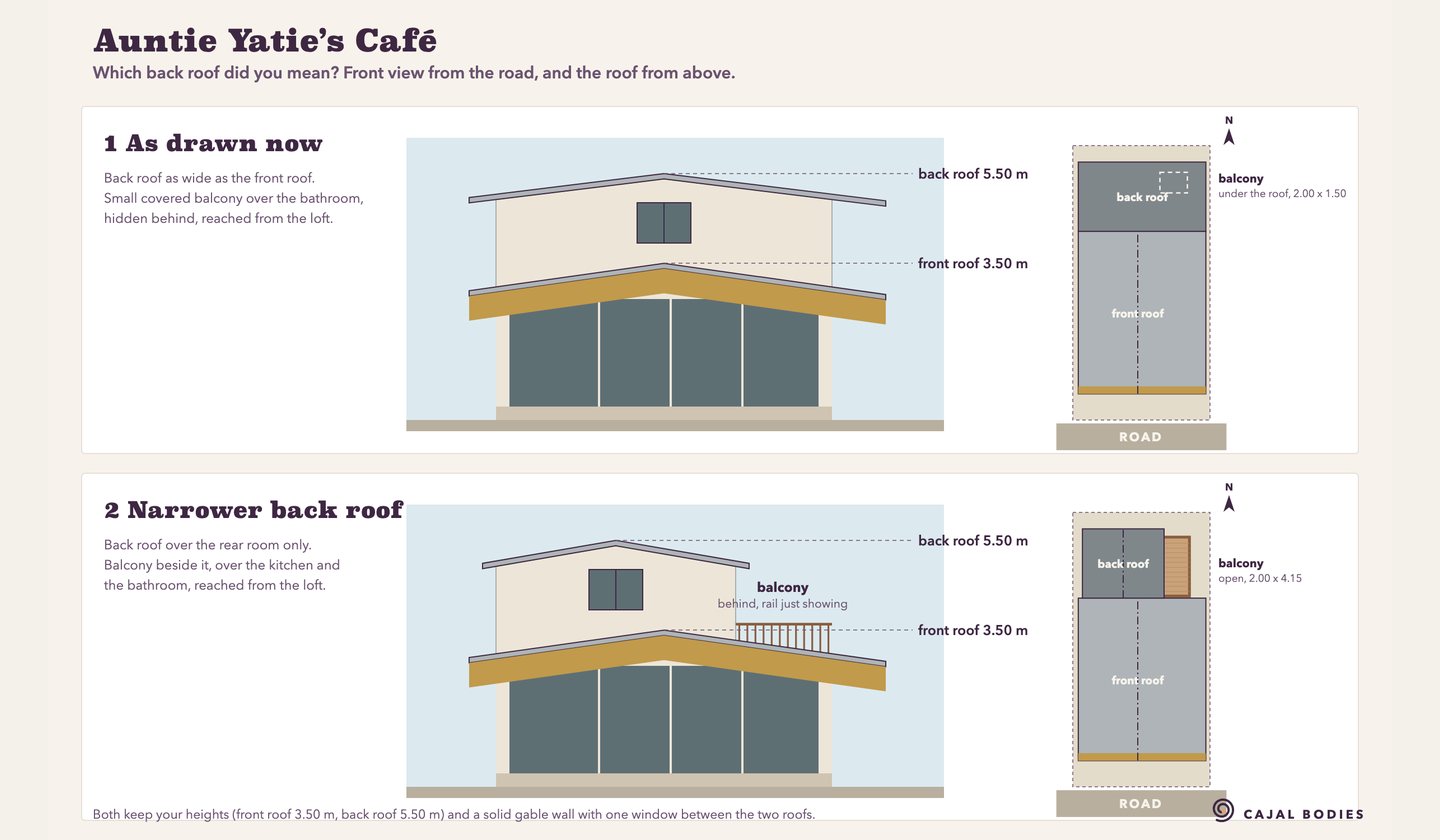

The interesting problem was the roof. The ceiling heights the client wanted put the café roof at eight degrees and the loft roof at six, and alang-alang thatch needs thirty or more before it sheds water. Rather than quietly pick one and lose either the look or the waterproofing, both numbers went back to her as numbers. She chose to split the difference, so thatch now runs as an eight-hundred-millimetre apron at the eave, where it is the thing you see, and long-run galvalume does the actual waterproofing behind it at low pitch.
The set now runs sixty-two A3 sheets at Rev B4: fifteen architectural, twelve for mechanical, electrical and plumbing, and thirty-five structural, all drawn to the same sheet kit and title block every Cajal Bodies drawing set uses.
It is drawn and not yet issued. Four decisions are still with the owner, and the structural sheets need an engineer's sign-off before anyone builds from them.
What we made
- A sixty-two sheet A3 contractor set at Rev B4
- Fifteen architectural sheets, twelve MEP and thirty-five structural

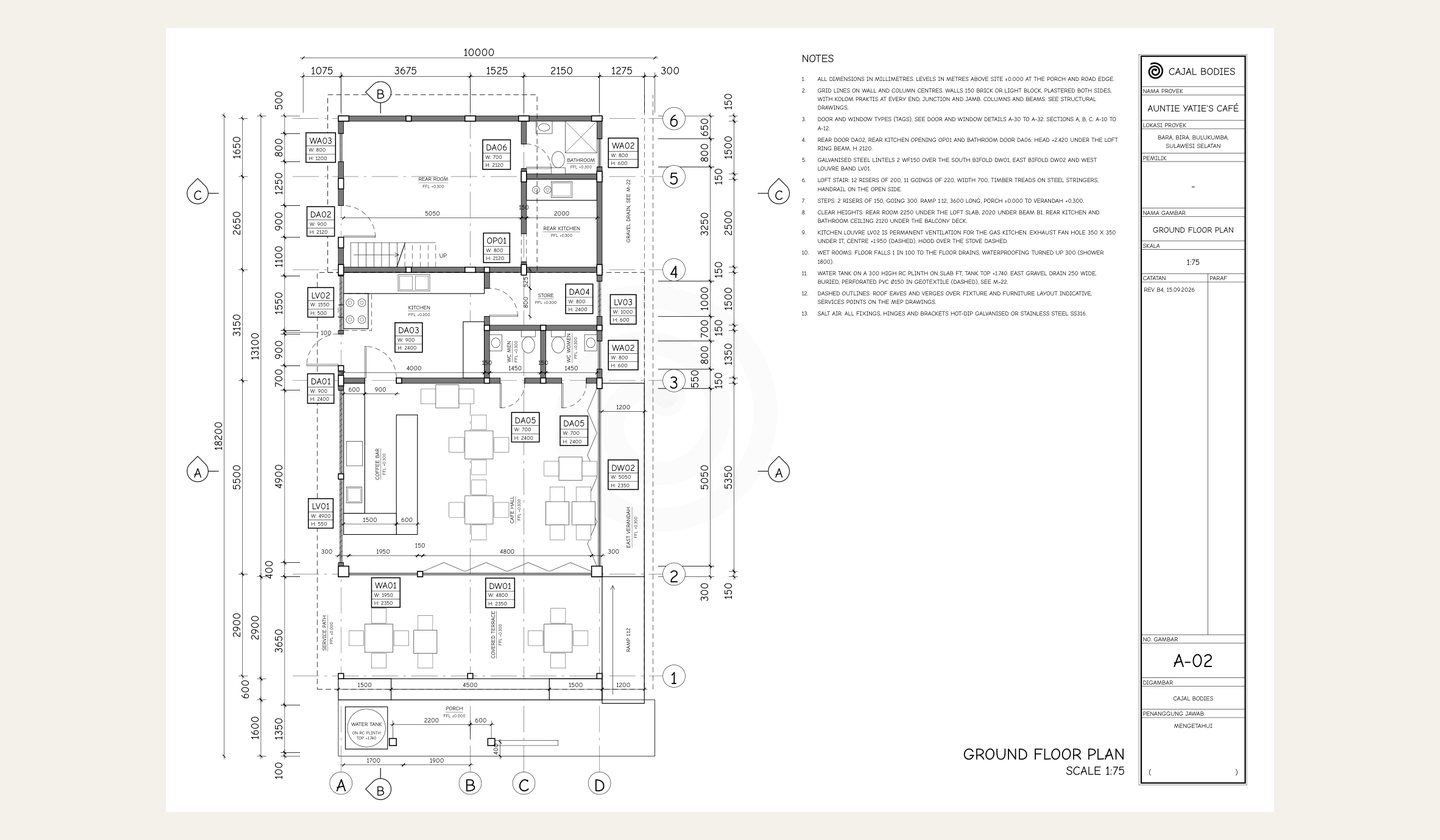

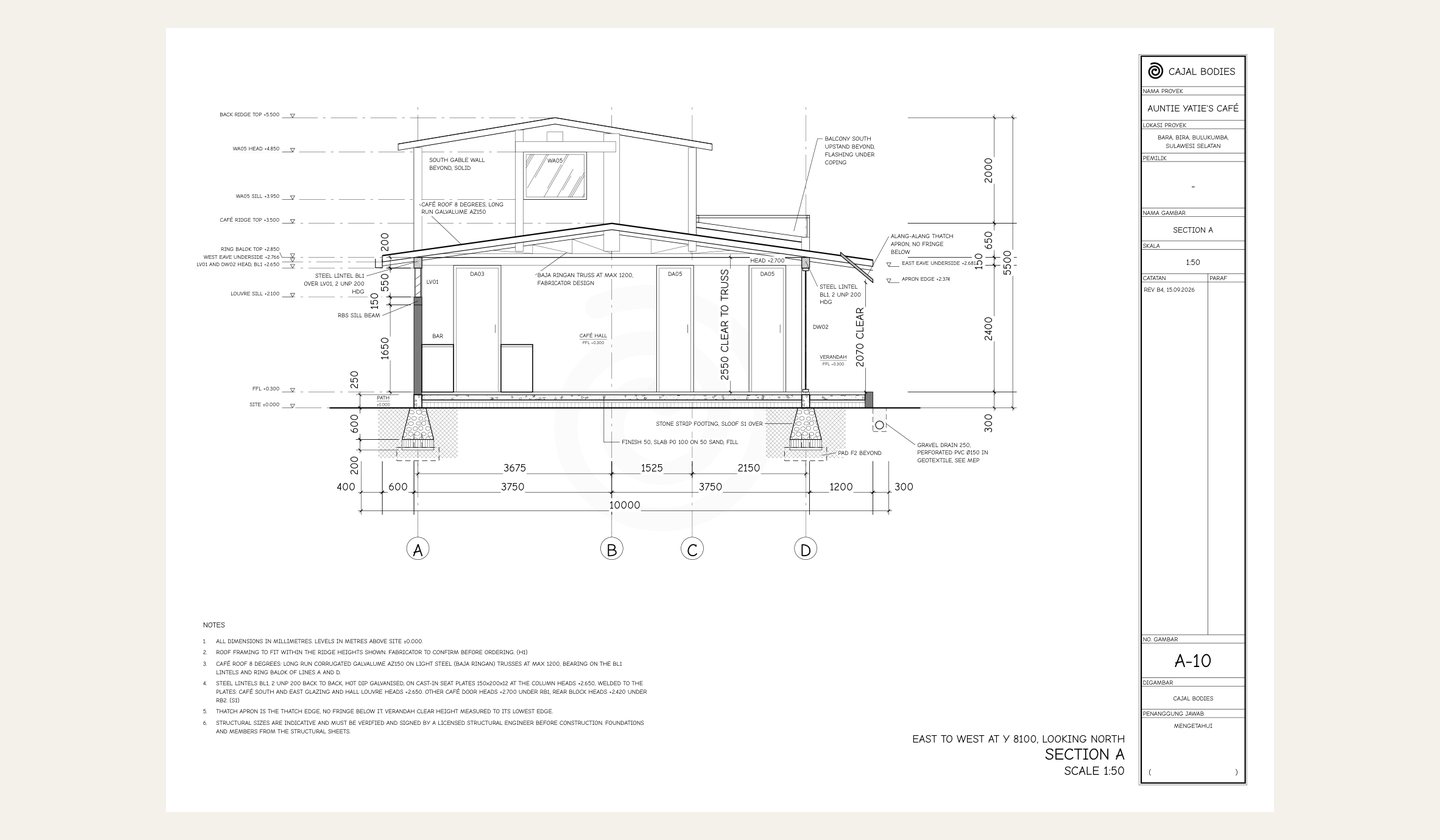

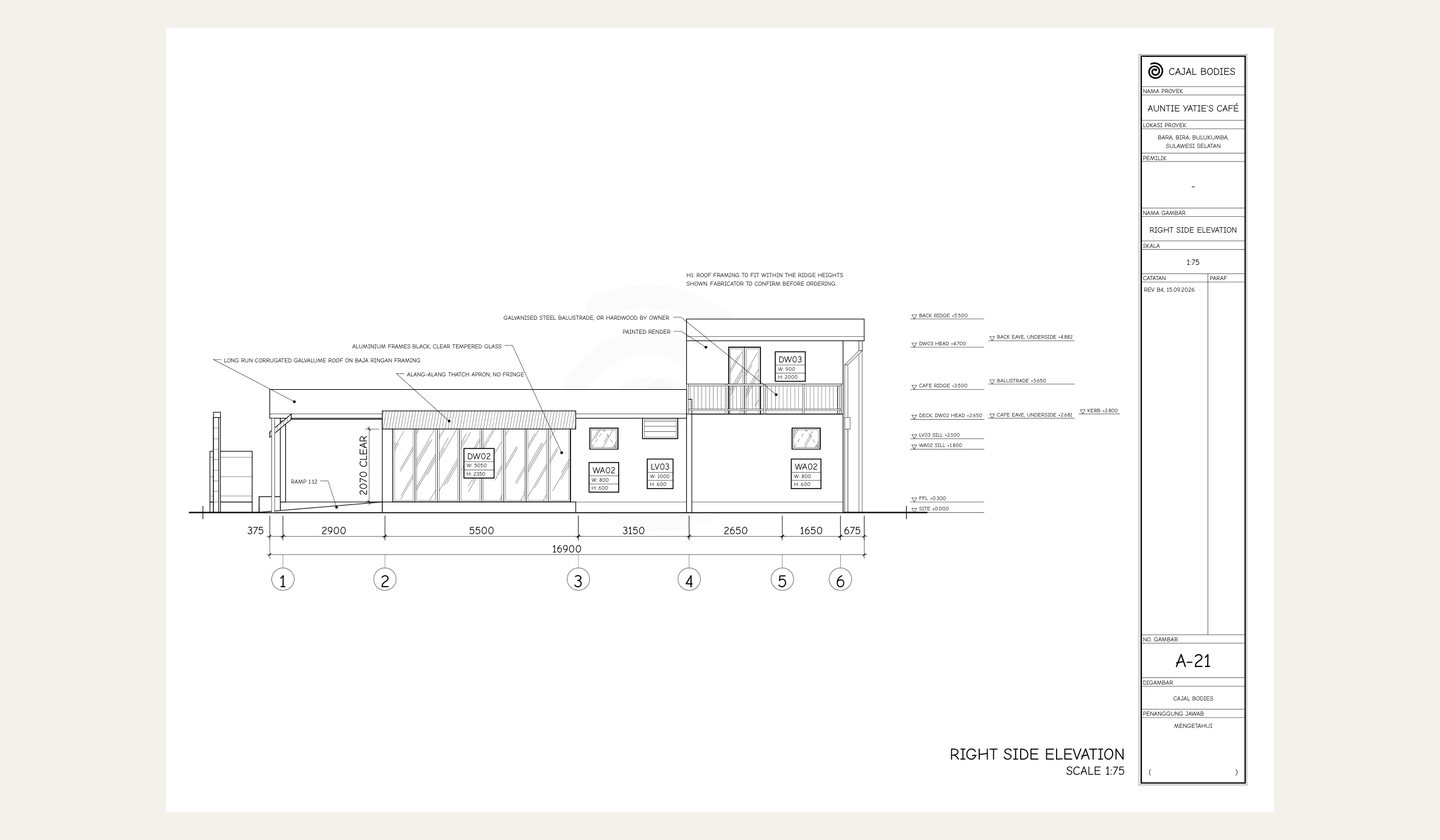

- Plans, elevations and sections at builder scale, with door and window schedules
- A roof detail that keeps thatch where it shows and metal where it works
- A sheet kit and title block carrying the Cajal Bodies mark
Built with
- Architectural drawing set
- Print-ready PDF
There is nothing to show here for Auntie Yatie's Café: it has no public site to visit yet, and none is invented for this page.
Questions people ask
Who drew the design set for Auntie Yatie's Café?
Cajal Bodies drew it in 2026: a sixty-two sheet A3 contractor set at Rev B4, fifteen architectural, twelve MEP and thirty-five structural, dimensioned for a local builder.
Where is Auntie Yatie's Café?
Bara, on the coast a few minutes north of Tanjung Bira in South Sulawesi, Indonesia.
